| Overview |

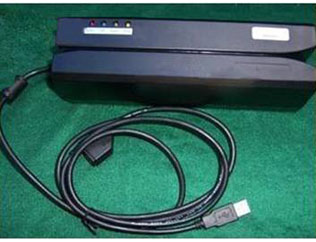

Magnetic Stripe Card Reader Writer can Read, Write, High & Low Coercivity (300~4000 Oe), with 3 tracks (track 1, 2 & 3), USB Interface. It is ideal for access control, banking, time keeping, credit verification & ID recognition and related applications. In essence, wherever a magnetic stripe ID or transaction card is used, one can find a related use for the versatile, user-friendly reader/writer.
The Magnetic Stripe Card Reader Writer is designed to offer a reading and writing solution of high and/or low coercivity cards that will attractively complement an existing system. It’s designed to read and/or write high or low coercivity magnetic stripe cards. It can encode and verify up to 3 tracks of data simultaneously. It communicates with a host computer or other terminal using a USB interface.
|
|
Specification
• Reading/Writing magnetic stripe card complied with ISO formats
• Reading/Writing Drivers Licenses
• Read/Write High & Low Coercive (300~4000Oe)
• High/Low Coercivity encoding circuitry selectable on screen
• Program software for Windows 98/Me/XP/Vista/windows 7
• Programming software for various read/write performance
• Can be use directly with Mini123ex etc
• Pure USB directly

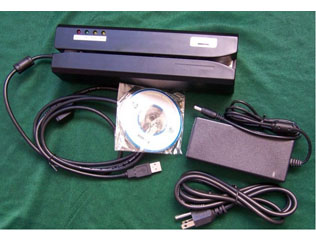

• +24VDC, 2.5A Max external power adapter attached
• 100% USER Satisfy And Exeba Software Support
• Dimensions of Box 290(L) x 180(W) x 100(H) mm
Electrical
| Power requirements |
+24VDC +/- 5% |
| Consumption |
Typical 350mA Max. 600mA plus for each writing track |
| Power supply |
External switching power 24V/2.5A |
| Communication |
Standard RS232 or USB with USB-to-RS232 |
| Ripple |
50mVp-p or less |
| Dielectric strength |
500 VDC for 1 minute |
| Read card |
Track1 |
Track2 |
Track3 |
| Bit per density |
210 bpi |
75/210bpi |
210 bpi |
| Coercive force |
Read/write 300-4000 oe Mag.card |
| Card thickness |
0.76-1.2mm |
| Read speed |
STD card Jitter +/-15% Amp. 60% |
5-55ips |
5-50ips |
5-50ips |
| Write speed |
5-30ips |
| Write jitter |
Interval < +/- 10%, Sub-interval < +/- 12% |
| Error rate |
Read < 0.5% Write < 0.8% |
| Head life |
Min. 1000K swipes for both read/write head |
|
|
